EMBRAIAGEM

TRANSMISSÃO PARA SUZUKI BANDIT 600 1997

CONJUNTO DE SELECTOR DE MUDANCAS

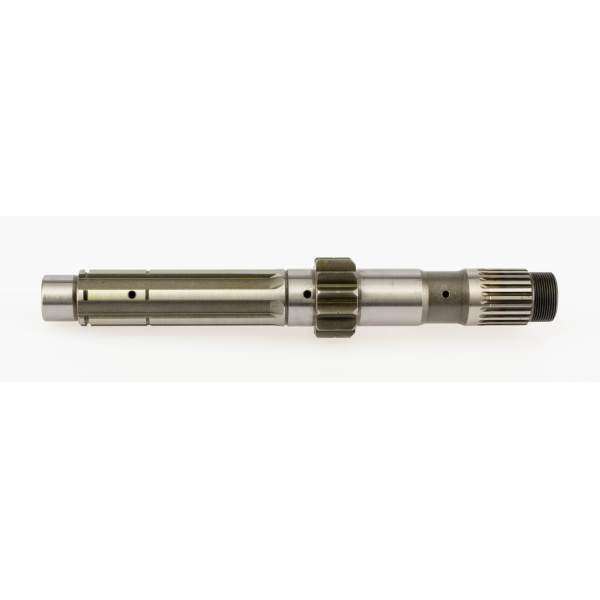

(1) 24121-19C01-000

EJE PRIMARIO
SHAFT, CNTR (NT:12)

(2) 24221-27A01-000

PI?ON CONDUCTOR DE 2A.
GEAR, 2ND DRIVE (NT:16)

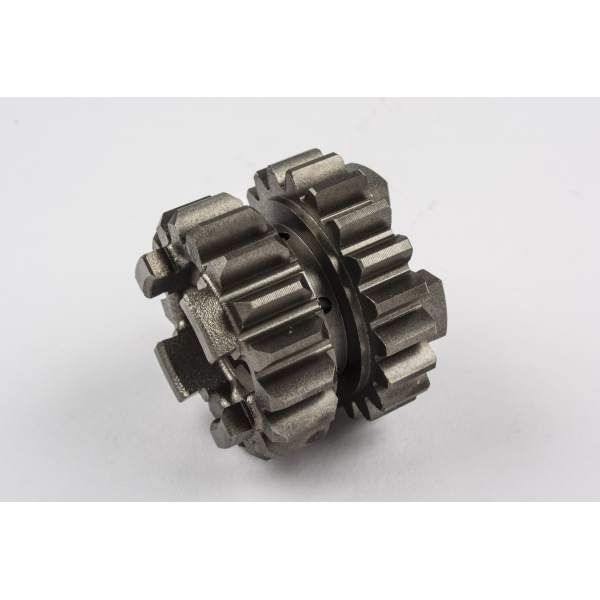

(3) 24231-27A00-000

PI?ON CONDUCTOR DE 3A.
THIRD DRIVE GEAR

(4) 24251-27A01-000

PI?ON CONDUCTOR DE 5A.
GEAR, 5TH DRIVE (NT:22)

(5) 24261-17C02-000

PI?ON CONDUCTOR DE 6A
GEAR, 6TH DRIVE (NT:21)

(6) 09167-25012-000

ARANDELA DE RETENCION
WASHER, 6TH DRIVE (25.1X31X1)

(7) 09262-25105-000

COJINETE,25X62X17
BEARING, CNTR SHAFT,RH

(8) 09263-20119-000

RODAMIENTO 20X34X17.5
BEARING, CNTR SHAFT,LH

(9) 09285-20006-000

RETEN
SEAL, OIL (20X31.2X2.7)

(10) 24322-19F00-000

CASQUILLO
BUSH, 5TH DRIVE GEAR

(11) 09380-25003-000

ARANDELA DE RETENCION
CIRCLIP, 5TH GEAR

(12) 09380-25003-000

ARANDELA DE RETENCION
CIRCLIP, 6TH GEAR

(13) 09380-25013-000

ARANDELA DE RETENCION
CIRCLIP, 2ND GEAR

(14) 09390-62012-000

C-ANILLO
C RING, CNTR BRG,RH

(15) 04221-07129-000

PERNO
PIN, CNTR BRG,LH

(16) 24131-20C10-000

EJE SECUNDARIO
SHAFT, DRIVE

(17) 24311-19C10-000

PI?ON CONDUCTOR 1A
GEAR, 1ST DRIVEN (NT:37)

(18) 24321-20C00-000

PI?ON CONDUCIDO 2A.
GEAR, 2ND DRIVEN (NT:33)

(19) 24331-27A00-000

PI?ON CONDUCIDO 3A.
GEAR, 3RD DRIVEN (NT:28)

(20) 24332-27A00-000

CASQUILLO
BUSH, 3RD DRIVEN

(20) 24332-27A00-000

CASQUILLO
BUSH, 3RD DRIVEN

(21) 24332-27A00-000

CASQUILLO
BUSH, 4TH DRIVEN

(22) 24341-27A01-000

PI?ON CONDUCTOR DE 4A
GEAR, 4TH DRIVEN (NT:28)

(23) 24351-27A00-000

PI?ON CONDUCIDO 5A.
GEAR, 5TH DRIVEN (NT:27)

(24) 24361-20C01-000

PI?ON CONDUCTOR DE 6A
GEAR, 6TH DRIVEN (NT:23)

(25) 09167-28001-000

ARANDELA DE RETENCION
WASHER, 3RD LH (28.1X38X1)

(26) 09167-28001-000

ARANDELA DE RETENCION
WASHER, 4TH RH (28.1X38X1)

(27) 09167-28002-000

ARANDELA DE RETENCION
WASHER, 3RD RH (28.1X43X1.5)

(28) 09169-28001-000

ARANDELA
WASHER, 3RD RH (28.1X40X1)

(29) 09263-20040-000

COJINETE DE BOLAS 20X34X20
BEARING, DRIVE SHAFT RH

(30) 09267-25011-000

COJINETE,25X62X21.6
BEARING, DRIVE SHAFT LH

(31) 09283-34005-000

RETEN,34X62X6
SEAL, DRIVE SHAFT OIL

(32) 09300-22008-000

CASQUILLO
BUSH, 1ST DRIVEN GEAR

(33) 09300-28003-000

CASQUILLO28X32X9.5
BUSH, 2ND DRIVEN GEAR

(34) 08331-31289-000

CIRCLIP
CIRCLIP, 2ND/3RD/4TH

(34) 08331-31289-000

CIRCLIP
CIRCLIP, 2ND/3RD/4TH

(34) 08331-31289-000

CIRCLIP
CIRCLIP, 2ND/3RD/4TH

(34) 08331-31289-000

CIRCLIP
CIRCLIP, 2ND/3RD/4TH
CIRCLIP

(34) 08331-31289-000

CIRCLIP
CIRCLIP, 2ND/3RD/4TH
CIRCLIP

(34) 08331-31289-000

CIRCLIP
CIRCLIP, 2ND/3RD/4TH
CIRCLIP

(35) 09390-62012-000

C-ANILLO
C RING, DRIVE BRG,LH

(36) 04221-07209-000

PERNO
PIN, DRIVE SHAFT BRG,RH

(37) 09181-20251-000

CU?A 20X34X1.0
WASHER, 1ST,RH (20X34X1.0)

(37) 08211-20341-000

ARANDELA ELASTICA
WASHER, 1ST,RH

(38) 09181-22223-000

CU?A,22X34X1
WASHER, 1ST,LH (22X34X1.0)

(38) 08211-22341-000

ARANDELA ELASTICA
WASHER, 1ST,LH

(39) 09181-28195-000

CU?A,28X38X1.0
WASHER, 2ND (28X38X1.0)

(40) 24741-27A00-000

SOPORTE RODAMIENTO
RETAINER, CNTR SHAFT

(41) 24751-40C01-000

PLETINA RETENCION
RETAINER, DRIVE SHAFT

(42) 01500-0612A-000

TORNILLO
BOLT, DRIVE SHAFT

(43) 02122-0616B-000

TORNILLO
SCREW, CNTR SHAFT

(44) 27510-17C10-000

PI?ON
SPROCKET, ENGINE (NT:15)

(45) 27600-16G00-110

CONJ CADENA
CHAIN ASSY, DRIVE (110LE)

(46) 09159-20004-000

TUERCA 20MM
NUT, ENGINE SPROCKET

(47) 09180-25091-000

ESPACIADOR
SPACER, ENGINE SPROCKET

(48) 01570-0616A-000

TORNILLO
BOLT, SPROCKET NUT

(49) 09181-25268-000

CU?A,25X40X1.5
WASHER, SPROCKET (25X40X1.5)

(50) 08212-06222-000

ARANDELA ELASTICA
WASHER, STOPPER BOLT

	No peça	Descrição	Quantidade
# 1	24121-19C01-000 2412119C01000 2412119C01000	EJE PRIMARIO SHAFT, CNTR (NT:12)	194,05 €
# 2	24221-27A01-000 2422127A01000 2422127A01000	PI?ON CONDUCTOR DE 2A. GEAR, 2ND DRIVE (NT:16)	93,98 €
# 3	24231-27A00-000 2423127A00000 2423127A00000	PI?ON CONDUCTOR DE 3A. THIRD DRIVE GEAR	146,51 €
# 4	24251-27A01-000 2425127A01000 2425127A01000	PI?ON CONDUCTOR DE 5A. GEAR, 5TH DRIVE (NT:22)	Não disponível	0,00 €
# 5	24261-17C02-000 2426117C02000 2426117C02000	PI?ON CONDUCTOR DE 6A GEAR, 6TH DRIVE (NT:21)	112,32 €
# 6	09167-25012-000 0916725012000 0916725012000	ARANDELA DE RETENCION WASHER, 6TH DRIVE (25.1X31X1)	4,03 €
# 7	09262-25105-000 0926225105000 0926225105000	COJINETE, 25X62X17 BEARING, CNTR SHAFT, RH	59,54 €
# 8	09263-20049-000 09263-20119-000 0926320049000	RODAMIENTO 20X34X17.5 BEARING, CNTR SHAFT, LH	57,86 €
# 9	09285-20006-000 0928520006000 0928520006000	RETEN SEAL, OIL (20X31.2X2.7)	7,85 €
# 10	09301-25001-000 24322-19F00-000 0930125001000	CASQUILLO BUSH, 5TH DRIVE GEAR	18,27 €
# 11	09380-25003-000 0938025003000 0938025003000	ARANDELA DE RETENCION CIRCLIP, 5TH GEAR	4,03 €
# 12	09380-25003-000 0938025003000 0938025003000	ARANDELA DE RETENCION CIRCLIP, 6TH GEAR	4,03 €
# 13	09380-25013-000 0938025013000 0938025013000	ARANDELA DE RETENCION CIRCLIP, 2ND GEAR	4,56 €
# 14	09390-62012-000 0939062012000 0939062012000	C-ANILLO C RING, CNTR BRG, RH	8,30 €
# 15	04221-07129-000 0422107129000 0422107129000	PERNO PIN, CNTR BRG, LH	2,27 €
# 16	24131-20C10-000 2413120C10000 2413120C10000	EJE SECUNDARIO SHAFT, DRIVE	Não disponível	0,00 €
# 17	24311-19C10-000 2431119C10000 2431119C10000	PI?ON CONDUCTOR 1A GEAR, 1ST DRIVEN (NT:37)	122,54 €
# 18	24321-20C00-000 2432120C00000 2432120C00000	PI?ON CONDUCIDO 2A. GEAR, 2ND DRIVEN (NT:33)	108,30 €
# 19	24331-27A00-000 2433127A00000 2433127A00000	PI?ON CONDUCIDO 3A. GEAR, 3RD DRIVEN (NT:28)	122,54 €
# 20	24332-27A00-000 2433227A00000 2433227A00000	CASQUILLO BUSH, 3RD DRIVEN	15,17 €
# 21	24332-27A00-000 2433227A00000 2433227A00000	CASQUILLO BUSH, 4TH DRIVEN	15,17 €
# 22	24341-27A01-000 2434127A01000 2434127A01000	PI?ON CONDUCTOR DE 4A GEAR, 4TH DRIVEN (NT:28)	Não disponível	0,00 €
# 23	24351-27A00-000 2435127A00000 2435127A00000	PI?ON CONDUCIDO 5A. GEAR, 5TH DRIVEN (NT:27)	112,32 €
# 24	24361-20C01-000 2436120C01000 2436120C01000	PI?ON CONDUCTOR DE 6A GEAR, 6TH DRIVEN (NT:23)	117,79 €
# 25	09167-28001-000 0916728001000 0916728001000	ARANDELA DE RETENCION WASHER, 3RD LH (28.1X38X1)	5,14 €
# 26	09167-28001-000 0916728001000 0916728001000	ARANDELA DE RETENCION WASHER, 4TH RH (28.1X38X1)	5,14 €
# 27	09167-28002-000 0916728002000 0916728002000	ARANDELA DE RETENCION WASHER, 3RD RH (28.1X43X1.5)	5,14 €
# 28	09169-28001-000 0916928001000 0916928001000	ARANDELA WASHER, 3RD RH (28.1X40X1)	4,03 €
# 29	09263-20040-000 0926320040000 0926320040000	COJINETE DE BOLAS 20X34X20 BEARING, DRIVE SHAFT RH	58,54 €
# 30	09267-25011-000 0926725011000 0926725011000	COJINETE, 25X62X21.6 BEARING, DRIVE SHAFT LH	159,37 €
# 31	09283-34005-000 0928334005000 0928334005000	RETEN, 34X62X6 SEAL, DRIVE SHAFT OIL	15,32 €
# 32	09300-22008-000 0930022008000 0930022008000	CASQUILLO BUSH, 1ST DRIVEN GEAR	14,36 €
# 33	09300-28003-000 0930028003000 0930028003000	CASQUILLO28X32X9.5 BUSH, 2ND DRIVEN GEAR	17,76 €
# 34	08331-31286-000 08331-31289-000 0833131286000	CIRCLIP CIRCLIP, 2ND/3RD/4TH	2,49 €
# 35	09390-62012-000 0939062012000 0939062012000	C-ANILLO C RING, DRIVE BRG, LH	8,30 €
# 36	04221-07209-000 0422107209000 0422107209000	PERNO PIN, DRIVE SHAFT BRG, RH	2,60 €
# 37	08211-20341-000 0821120341000 0821120341000	ARANDELA ELASTICA WASHER, 1ST, RH	3,16 €
# 37	09181-20251-000 0918120251000 0918120251000	CU?A 20X34X1.0 WASHER, 1ST, RH (20X34X1.0)	3,75 €
# 38	08211-22341-000 0821122341000 0821122341000	ARANDELA ELASTICA WASHER, 1ST, LH	4,03 €
# 38	09181-22223-000 0918122223000 0918122223000	CU?A, 22X34X1 WASHER, 1ST, LH (22X34X1.0)	4,14 €
# 39	09181-28195-000 0918128195000 0918128195000	CU?A, 28X38X1.0 WASHER, 2ND (28X38X1.0)	5,14 €
# 40	24741-27A00-000 2474127A00000 2474127A00000	SOPORTE RODAMIENTO RETAINER, CNTR SHAFT	8,42 €
# 41	24751-40C01-000 2475140C01000 2475140C01000	PLETINA RETENCION RETAINER, DRIVE SHAFT	7,42 €
# 42	01500-06123-000 01500-0612A-000 0150006123000	TORNILLO BOLT, DRIVE SHAFT	2,55 €
# 43	02122-06163-000 02122-0616B-000 0212206163000	TORNILLO SCREW, CNTR SHAFT	2,42 €
# 44	27510-17C10-000 2751017C10000 2751017C10000	PI?ON SPROCKET, ENGINE (NT:15)	73,86 €
# 45	27600-21E00-110 27600-16G00-110 2760021E00110	CONJ CADENA CHAIN ASSY, DRIVE (110LE)	257,54 €
# 46	09159-20004-000 0915920004000 0915920004000	TUERCA 20MM NUT, ENGINE SPROCKET	17,76 €
# 47	09180-25091-000 0918025091000 0918025091000	ESPACIADOR SPACER, ENGINE SPROCKET	17,76 €
# 48	01570-06163-000 01570-0616A-000 0157006163000	TORNILLO BOLT, SPROCKET NUT	2,78 €
# 49	09181-25268-000 0918125268000 0918125268000	CU?A, 25X40X1.5 WASHER, SPROCKET (25X40X1.5)	4,14 €
# 50	08212-06222-000 0821206222000 0821206222000	ARANDELA ELASTICA WASHER, STOPPER BOLT	2,00 €

Observe que as peças colocadas à venda são peças do catálogo do fabricante, às vezes temos que encomendá-las especialmente para você na Suzuki. Consulte a seção Envio e Entrega para obter mais informações sobre os prazos de entrega.
Os diagramas não são contratuais, caso tenha alguma dúvida os nossos profissionais estão aqui para o ajudar e aconselhar da melhor forma possível.
Selecione o número da peça necessária no diagrama ou consulte a lista acima para encontrar as informações e preços relativos às diferentes peças.
Tenha o cuidado de pedir a quantidade necessária ao adicionar uma peça ao carrinho. Observe que o preço unitário indicado é o preço de cada número de peça na quantidade 1.
Encontre nesta página todas as peças sobressalentes originais relacionadas ao TRANSMISSÃO de sua Suzuki BANDIT 600 de BANDIT. Deixe-nos saber se você tiver alguma dúvida.
